Danfoss 83098754 D1P260 axial piston pump in stock

Danfoss 83098754 D1P260 axial piston pump in stock

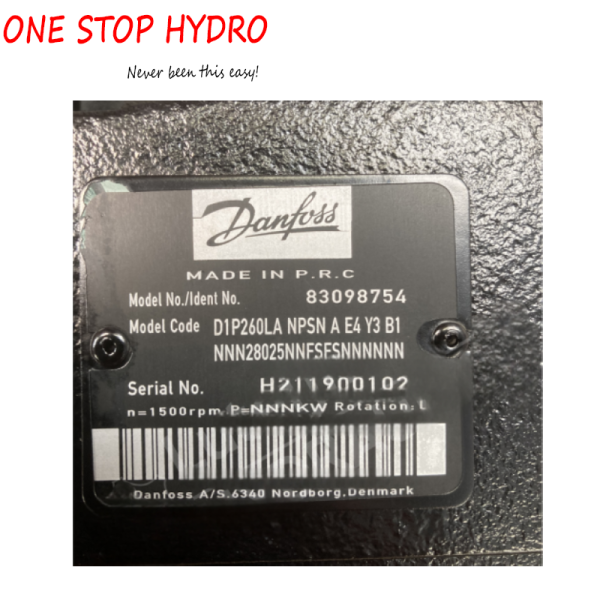

Danfoss 83098754 D1P260

D1P overview

The D1 pump series are high performance variable axial piston pumps designed primarily for open circuit
hydraulic systems used in heavy duty mobile applications.
Displacement options

• 65 cm3 [3.97 in3]

• 130 cm3 [7.93 in3]

• 145 cm3[8.85 in3]

• 160 cm3[9.76 in3]

• 193 cm3[11.78 in3]

• 260 cm3[15.87 in3]

Product highlights

• Maximum working pressure: 350 bar [5076 psi], peak pressure (intermittent): 400 bar [5802 psi].
• Input speed up to 2,500 rpm.

Control options

• Mechanical power control
• Electric power control
• Pressure compensated control
• Remote pressure compensated control
• Electric proportional displacement control
• Load sensing control

D1P features and benefits

• Robust design for harsh conditions.
• Swashplate, servo-controlled design, with proven reliability and performance.
• Angled piston bore design improves self-priming capability.
• The spherical valve plate and cylinder block interface provide stable cylinder block rotation, thus
achieving high efficiency.
• Integral charge pump option allows the pump to run at higher speed and achieve good cold start

performance.

• Full through-drive capability is suitable for adding axial piston pumps and gear pumps.
• Optimized cradle bearing improves pump service life.
• PLUS+1® compliant controls.
• Can be used together in combination with other Danfoss Power Solutions products in the overall

hydraulic system, such as:

‒ Pumps (S45, S90, H1P, gear pumps, etc.)
‒ PVG valves
‒ Motors (S90, H1B, etc).

D1P typical applications
• Concrete Machinery
• Mining Machinery
• Drilling Machinery
• Material Handling
• Marine and Off-shore Machinery
• Oil Machinery

D1P260LANPSNAE4Y3B1NNN28025NNFSFSNNNNNN
D1P-260-L-A-NPSN-A-E4-Y3-B1-NNN-280-25-NN-FS-FS-NNN-NNN
