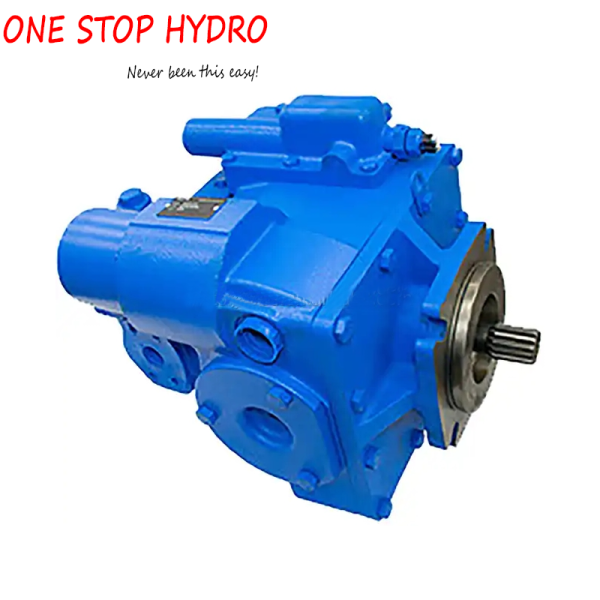

Eaton ACA Series 1 variable displacement piston pump

Eaton ACA Series 1 variable displacement piston pump
Hydrostatic Transmissions 3923 4623 5423 6423 7620

Eaton ACA Eaton ACA

Drive shafts – a wide variety of options are available to suit every need.

High strength swashplates on variable pumps and motors – resist deflection under high load.

High strength cast iron housings – provide greater noise damping and wall strength.

High flow check valves in pumps – keep the system primed with minimal pressure drop.

Charge pumps on pumps – gerotor type, several displacement options are available to suit the needs of every application. All cast iron construction.

Cartridge shaft seal – lends itself to easy service ability. Mechanical face seal design tolerates high speed and high case pressures.

Typical Applications

Construction

• Transit Mixer
• Road Roller
• Paver
• Motor Grader
• Loader
• Dozer

Agriculture

• Tractor
• Harvester
• Windrower
• Sprayer
• Planter

Material Handling & Utility

• Crane
• Sweeper
• Lift Truck

Industrial Applications

• Oil & Gas
• Marine

Complete Model No.
