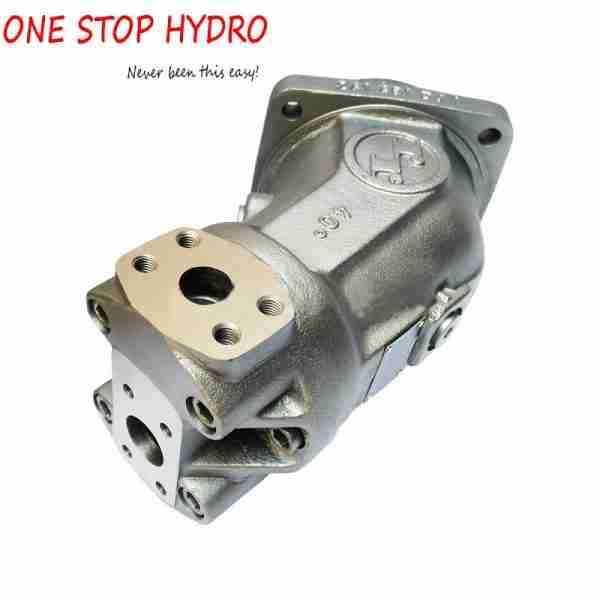

Rexroth A2FO12 Fixed Displacement pump

Rexroth A2FO12 Fixed Displacement pump

Rexroth A2FO12

Features for A2FO12 pump

Fixed displacement pump A2FO of axial piston, bent axis design suitable for hydrostatic drives in open circuits.
Suitable for use in mobile or industrial applications.
Output flow is proportional to drive speed and displacement.
The drive shaft bearings design to give the service life expected in these areas of operation.
Careful selection of the displacements offer, permit sizes to match to practically every application.
Favourable power / weight ratio
Compact and economical design
Optimum efficiency
One piece pistons with piston rings

Sizes 22 and 28

Nominal pressure 400 bar

Maximum pressure 450 bar

Sizes 71 to 500

Nominal pressure 350 bar

Maximum pressure 400 bar

Hydraulic fluids

The A4FO fixed pump is designed for operation with HLP

mineral oil according to DIN 51524.

Application instructions and requirements for hydraulic

fluids should take from the following data sheets

before the start of project planning:

90220: Hydraulic fluids based on mineral oils and related

hydrocarbons

90221: Environmentally acceptable hydraulic fluids

90222: Fire-resistant, water-free hydraulic fluids

(HFDR/HFDU)

90223: Fire-resistant, water-containing hydraulic fluids

(HFC, HFB, HFAE, HFAS)

Sizes 22 and 28 are not suitable for operation with HFA,

HFB and HFC.

Details regarding the choice of hydraulic fluid

The hydraulic fluid should be selected such that the operating viscosity in the operating temperature range is within

the optimum range (νopt, see selection diagram).

Note

At no point of the component may the temperature be higher

than 115 °C (sizes 22 and 28) and 90 °C (sizes 71 to 500).

The temperature difference specified in the table is to be taken

into account when determining the viscosity in the bearing.

If the above conditions cannot be maintained due to

extreme operating parameters, please contact the responsible member of staff at Bosch Rexroth.
