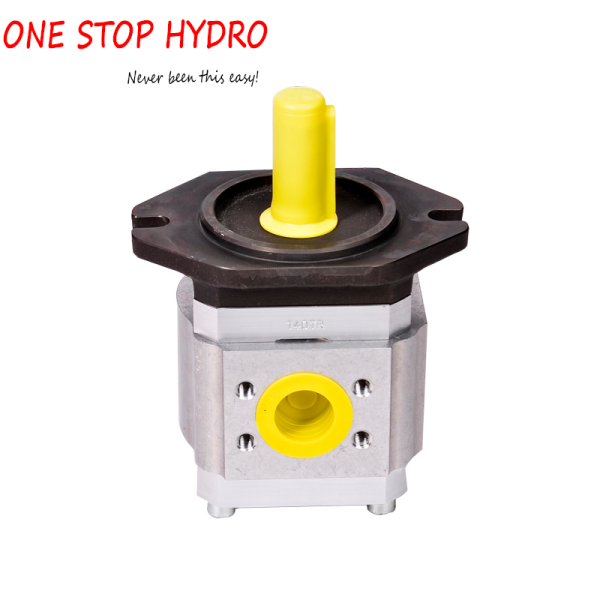

Eckerle Hydraulic Internal Gear Pump for Servo System
Specifications
Eckerle EIPC series gear pump is widely used in injection molding machines, forging machinery and elevators and other mechanical equipment.
Features
■ 1. low noise performance
The Eckerle series internal gears are smooth and mute, and their excellent features are specially designed for gears. The sound is very low when used, and the sound is still smooth even at high speeds.
■ 2, high running wear resistance
In addition to the simple mechanical structure, the use of advancedhydraulic oil can reduce the mechanical surface and the wear and tear of the functional parts. Eckerle gear chestnut can run at high pressure, even if the use of general hydraulic oil, it is not easy to wear pieces.
■ 3, very low pressure pulsation
Eckerle gear pump can almost completely remove the pressure wave, it can be used as the system precision control of the ideal machine tool pressure.
Installation Dimensions
| Model | A | B | ∅C | ∅D | E | F key width x length | O | 2-H | G | ∅I | J | K1 | K2 | V | |
| EIPC3-32 | 56 | 6 | ∅101.6h8 | ∅25g6 | 28 | 8h9x36 | 13 | 2-13.5 | 146 | ∅170 | 48 | 6.5 | 83.2 | 34 | |
| EIPC3-40 | 88.7 | ||||||||||||||
| EIPC3-50 | 95.7 | ||||||||||||||
| EIPC3-64 | 95.7 | 76 | |||||||||||||
| EIPC3-80 | 68 | 6 | ∅127h8 | ∅32g6 | 35 | 10h9x36 | 25 | 2-17.5 | 181 | ∅208 | 70 | 8.3 | 92.5 | 41.5 | |
| EIPC3-100 | 100.5 | ||||||||||||||
| EIPC3-125 | 88 | 9 | ∅152.4h8 | ∅40g6 | 43 | 12h9x70 | 25 | 2-22 | 282.6 | ∅260 | 83 | 8.3 | 109.5 | 45 | |
| EIPC3-160 | 120 | ||||||||||||||
| Model | L | ∅N | O | R | T | U | ∅S | W | X | M1 | ∅P | Y | Z | M2 | ||
| EIPC3-32 | 114.4 | 26 | 57 | 67.5 | 64 | 65 | ∅32 | 58.7 | 30.2 | M10 deep 17 | ∅18 | 47.6 | 22.2 | M10 deep 17 | ||
| EIPC3-40 | 125.4 | ∅20 | 52.4 | 26.2 | M10 deep 17 | |||||||||||
| EIPC3-50 | 139.4 | |||||||||||||||
| EIPC3-64 | 139.4 | |||||||||||||||
| EIPC3-80 | 93 | 46 | 75 | 82 | 75.5 | 76 | ∅47.2 | 77.8 | 42.9 | M12 deep 20 | ∅31.75 | 66.7 | 31.8 | M14 deep 24 | ||
| EIPC3-100 | 109 | ∅63.5 | 88.9 | 50.8 | M12 deep 20 | |||||||||||
| EIPC3-125 | 115 | 52 | 91.2 | 98.8 | 95 | 90 | ∅63.5 | 88.9 | 50.8 | M12 deep 20 | ∅38.1 | 79.4 | 36.5 | M16 deep 24 | ||
| EIPC3-160 | 136 | ∅76.2 | 106.4 | 61.9 | M16 deep 22 | |||||||||||
