Model Designation
| VG1 | -63 | R | E | W | A1 |
| Series No | Displacement | Rotation | Shaft type | Sealing level | Design No. |
| VG0 | 8，10，13，16，20 | View from shaft end of pump R= right hand for clockwise L= left hand for count-clockwise | E= Str Key R=SEA Spline | W=NBR, Nitrile rubber, V=Fluororubber | A1 |
| VG1 | 25，32，40，50，63 | ||||
| VG2 | 80，100，125，145，160 |

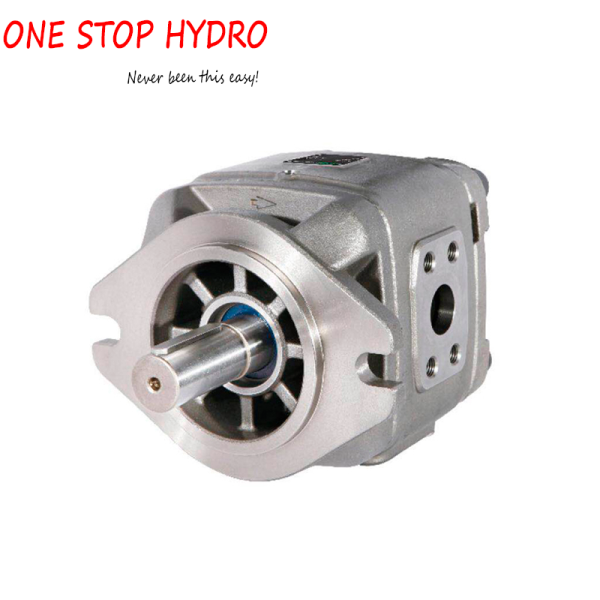

VG1 Series Internal Gear Pump Widely Used for Injection Machine
Main Features:
1. Using axial and radial pressure compensation design, even at low speed and low viscosity still maintain high volume efficiency.
2. Ultra-low noise, high strength cast iron and unique internal muffler design make the noise even lower
3. Extremely low flow and pressure pulsation, can maintain stable flow and pressure output at low speed condition.
4. High pressure design, the maximum working pressure can reach to 35Mpa.
5. Wide speed range, the highest speed up to 3000rpm/min.
6. Can be arbitrarily combined to form a double pump.
7. It is not sensitive to oil pollution and has long service life.
8. It can be widely used in industry, such as plastic machine, shoe machine, die casting machinery and forklift and other industries hydraulic system, especially for servo variable frequency drive energy saving system.
